UBA 9000 Amplifier Series

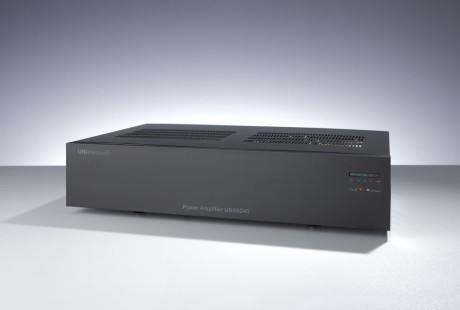

Power Amplifier UBA 9240 (240W) and UBA 9480 (480W)
With the UBA 9240 (240W) and UBA 9480 (480W) power amplifier, UNIelectronic offers 2 compact and highly reliable 100 V ELA power amplifiers with an excellent price/performance ratio.
The existing inputs and outputs are available both balanced (XLR) and unbalanced (Cinch).
A master level adjuster is located on the back of the power amplifier.
In addition to 100 V operation, it is possible to connect low-impedance speakers (8 ohms).
The power amplifiers can be operated on 24 V DC emergency power supplies and are equipped with extensive protective circuits for maximal security. Pilot tone monitoring can be switched on, as can the option to activate remote mains switching.
19″ brackets optional available for easy rack installation.
Technical Data:
| Name: | UBA 9240 UBA 9480 |
| Item no.: | UBA 9240: 104434 UBA 9480: 104490 |
| Output power: | UBA 9240: 240 W / 100 V UBA 9480: 480 W / 100 V |
| Input sensitivity: | 1 V / 10 kOhm |
| Signal-to-noise ratio: | > 85 dB |
| Total Harmonic Distortion (THD): | <0.01% / 1 kHz |
| Power consumption: | UBA 9240: 720 W UBA 9480: 1440 W |
| Operating voltage: | 115 V & 230 V / 50 Hz DC 24 V |
| Dimensions (in mm): | UBA 9240: 88 x 430 x 300 (2RU) UBA 9480: 88 x 430 x 385 (2RU) |
| Weight: | UBA 9240: 13 kg UBA 9480: 19 kg |
