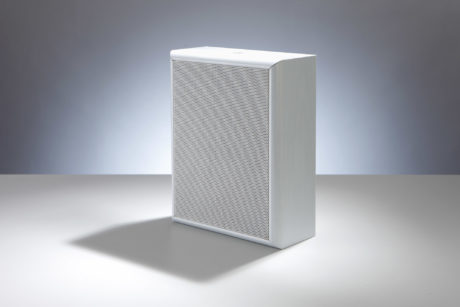

WSW 165-6 EN54
Wall-mounted speaker with a high-quality, waterproof 165mm drivers for voice alarm projects in fire alarm and evacuation systems. The high-density MDF enclosure and the robust steel front grille conforms with IP54.
| Name | WSW 165-6 EN54 |
|---|---|
| Article no. | 108159 |
| Power handling | 6/3/1.5 W |
| Frequency range (-10dB) IEC 268-5 | 197 - 21,900 Hz |
| Frequency response | 175 - 23,500 Hz |
| Sound pressure level 1W/1m IEC 268-5 | 100.6 dB |
| Sound pressure level W/4m IEC 268-6 | 86.6 dB |
| Sound pressure level Pmax/4m IEC 268-7 | 96.3 dB |
| Sensitivity 1W/4m EN54-24 | 79.5 dB |
| Aperture angle -6dB, 500Hz | 180° h/ 180° v |
| Aperture angle -6dB, 1KHz | 83° h/ 74° v |
| Aperture angle -6dB, 2KHz | 100° h/ 115° v |
| Aperture angle -6dB, 4KHz | 55° h/ 53°v |
| Dimensions | 254x195x81 |
| Weight | 1.99 kg |
| Temperature resistance | -20 / +80 °C |
| Rear panel fastener | Spring clamps |
| Connector | 2-pole ceramic terminal |
| Protection class | IP54 |
| Maximum cable cross-section | 8mm² |
| Maximum cable cross-section loopthrough | 2x2mm² |
| Color | white |
