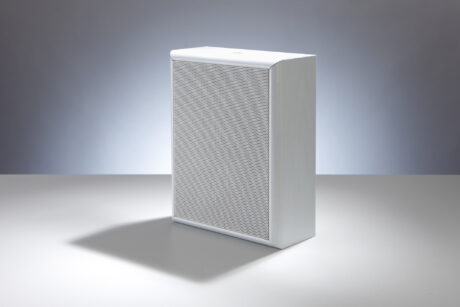

WSW 125-6AB EN54

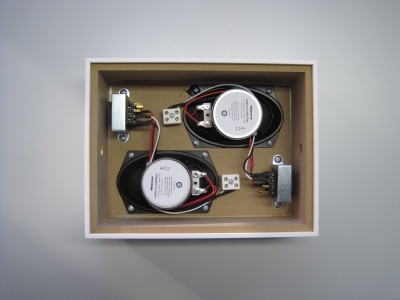

Wall-mounted feature for voice alarm projects with two independent driver (A/B lines) in accordance with EN54-24. The speaker features a high-density MDF enclosure offering 2x 6W output and the high security class of IP54.
| Name | WSW 125-6AB EN54 | |
|---|---|---|
| Article no. | 108194 | |
| Single operation | Double operation | |
| Power handling | 6/3/1.5 W | 2 x 6/3/1.5 W |
| Frequency range (-10dB) IEC 268-5 | 227 - 14,600 Hz | 224 - 14,300 Hz |
| Frequency response | 165 - 23,500 Hz | 162 - 23,500 Hz |
| Sound pressure level 1W/1m IEC 268-5 | 100.7 dB | 105.9 dB |
| Sound pressure level 1W/4m IEC 268-6 | 88.7 db | 93.9 dB |
| Sound pressure level Pmax/4m IEC 268-7 | 96.4 dB | 101.6 dB |
| Sensitivity 1W/4m EN54-24 | 77.5 dB | 80.6 dB |
| Aperture angle -6dB, 500Hz | 180° h/v | 180° h/v |
| Aperture angle -6dB, 1KHz | 64° h / 55° v | 80° h / 77° v |
| Aperture angle -6dB, 2KHz | 123° h / 117° v | 86° h / 62° v |
| Aperture angle -6dB, 4KHz | 105° h / 52° v | 32° h / 26° v |
| Dimensions | 254x195x81 mm | |
| Weight | 2.1 kg | |
| Temperature resistance | -20 / +80° C | |
| Fastening rear panel | Spring clamps | |
| Connector | 2-pole ceramic terminal | |
| Protection class | IP 54 | |
| Maximum cable cross-section | 8mm² | |
| Maximum cable cross-section loopthrough | 2 x 2mm² | |
| Color | white |
