CSM 165-6 EN54

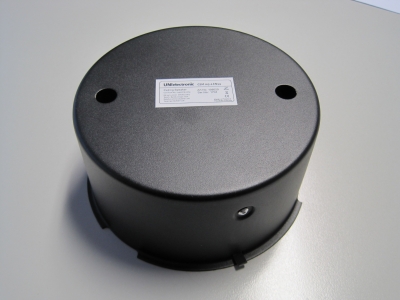

Ceiling speaker with a plastic-coated metal enclosure voice alarm projects in fire alarm and evacuation systems. This speaker offers a high-efficiency 6W driver and is fitted with a ceramic terminal, thermal fuse and firedome.
| Name | CSM 165-6 EN54 |
|---|---|
| Article no. | 108020 |
| Power handling | 6/3/1.5 W |
| Frequency range (-10dB) IEC 268-5 | 404 - 10,100 Hz |
| Frequency response | 80 - 24,000 Hz |
| Sound pressure1W/1m IEC 268-5 | 102.5 dB |
| Sound pressure IEC 268-6 | 90.5 dB |
| Sound presssure Pmax/4m IEC 268-7 | 98.2 dB |
| Sensitivity 1W/4m EN54-24 | 78 dB |
| Aperture angle -6dB, 500Hz | 180° |
| Aperture angle -6dB, 1KHz | 180° |
| Aperture angle -6dB, 2KHz | 128° |
| Aperture angle -6dB, 4KHz | 55° |
| Dimesions | 220 x 112 mm |
| Weight | 1.3 kg |
| Ceiling cutout | 198 mm |
| Temperature resistance | -20 / +80 °C |
| Fastener | Spring clamps |
| Connector | 2-pole ceramic terminal |
| Protection class | IP21 |
| Maximum cable cross-section | 8mm² |
| Maximum cable cross-section loopthrough | 2x2mm² |
| Color | RAL 9010 |
