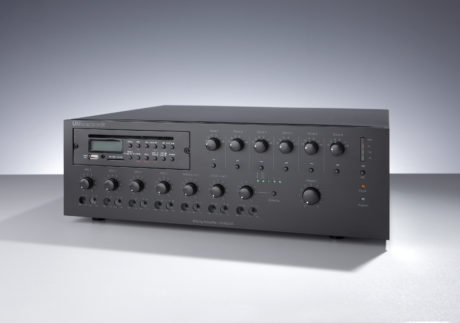

UCA 8240 – Compact PA System
This 6 Zone/240W compact PA System (see picture with optional Modul) is made for universal use with a full range of professional features.
The optional expansions units UCX 8012 allow an increase from 6 to max. 54 zones. Numerous priorities, seven inputs with individual tone control for hi/lo, adjustable Zone control, phantom power, fourtone gong, 24V operation, etc.
More optional devices: diverse source Moduls with Tuner, CD, USB und SD, expandable Desktop Microphone (UPM 8006), 12 Zone Key Expander (UPX 8012), Wall Panel (UWC 8006), DIN-Alarm-/Chime und Message-Player Module (UMP 6M) and 19″ Rackmount Set (RMK 8000).

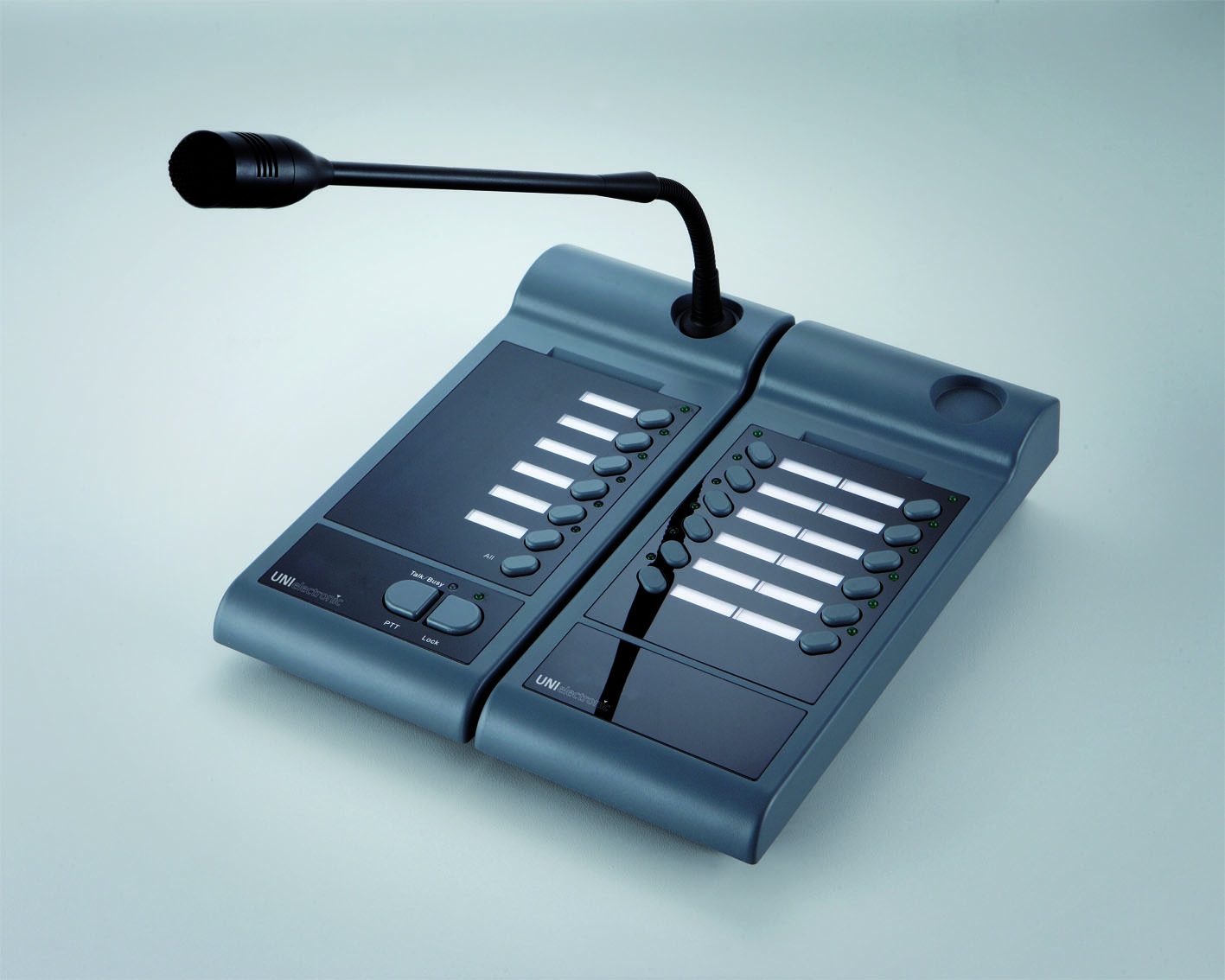

UPM 8006 and UPX 8012:
Accessories:
UPM 8006 – Paging Station for UCA 8240
UMP 6M – Alarm-, Chime-, Message-Player Modul
UCX 8012 – Zone Expander for UCA 8240
Technical Data:
| Operating voltage: | 115/230 V AC, 50/60 Hz, 24 V DC |
| Output power: | 240 W |
| Power consumption: | 720 W |
| Frequency response: | MIC: 60 - 15 kHz +1/-3 dB |
| AUX: 50 - 20 kHz +1/-3 dB | |
| Total Harmonic Distortion (THD): | ＜ 1% (at power handling) |
| Inputs: | MIC 1 - 6: 1.5 mV, 600 Ω, balanced LINE 1 - 2: 200 mV, 600 Ω, balanced AUX 1: 500 mV, 10KΩ, XLR, balanced AUX 2: 500 mV, 10 KΩ, unbalanced AUX 3: 300 mV, 10 KΩ, unbalanced Power In: 1 V, 600 Ω, unbalanced Desktop mic: 1 V, RJ45 connector TEL/EMER 100 mV, 600 Ω, balanced Wall panel 1 V, RJ45 connector |
| 100 V inputs: | TEL/EMER: 100 V, balanced Ext. Amp In: 100 V input |
| Outputs: | REC Out: 1 V, unbalanced, RCA PRE Out: 1 V, unbalanced, RCA Ext. Amplifier XLR out 1 V, balanced, XLR MOH 0/8 Ω: 8 Ω,1 W, unbalanced MOH 600 Ω: 600 Ω, output, 1 Vrms, balanced Direct Output: 100 V - 70 V - 8 Ω - 0. Z1 - Z6 Output: 100 V - 0 |
| Phantom power: | ON / OFF, MIC 1 - 6, 18 V DC |
| Signal-to-noise ratio: | MIC 1 – 4: > 60 dB TEL: > 70 dB MIC 5 - 6: > 60 dB LINE 1 - 2: > 70 dB AUX 1 - 3: > 75 dB |
| Operating temperature: | -10 - 30°C |
| Dimensions (in mm; HxWxD): | 133 x 430 x 365 |
| Weight: | 19 kg |
