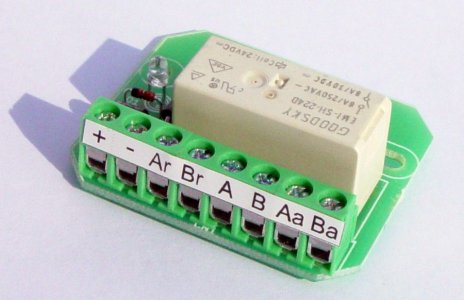

URB 1 – Override Relay
The relay board URB 1 can be used to feed 100 V signals into superordinated systems and can be switched under consideration of bypass signals.
The relay board can be retrofitted into speakers or be used for bypassing volume controls. It’s compact design also allows fitting into inwall switch boxes (Ø 55 mm)
Technical Data:
| Name: | URB 5 |
| Item no.: | 114201 |
| Control: | analog |
| Power supply: | 24V DC |
| Switching power: | 6A / 100 V per contact |
| Power consumption: | max. 20 mA |
| Dimensions (in mm): | 40 x 47 x 20 |
