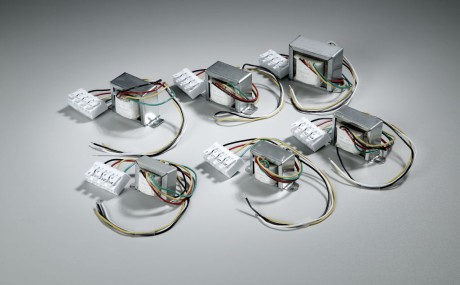

UT Serie – 100V Übertrager
100 V Übertrager für die Umrüstung von Lautsprechern zur Verwendung in 100 V Systemen.
Technische Daten:
| Name: | UT 6 | UT 10 | UT 20 | UT 30 | UT 40 | UT 60 |
| Nennleistung: | 6W | 10W | 20W | 30W | 40W | 60W |
| Sekundär (Ohm): | 4 Ohm / 8 Ohm |
|||||

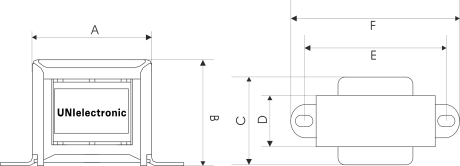

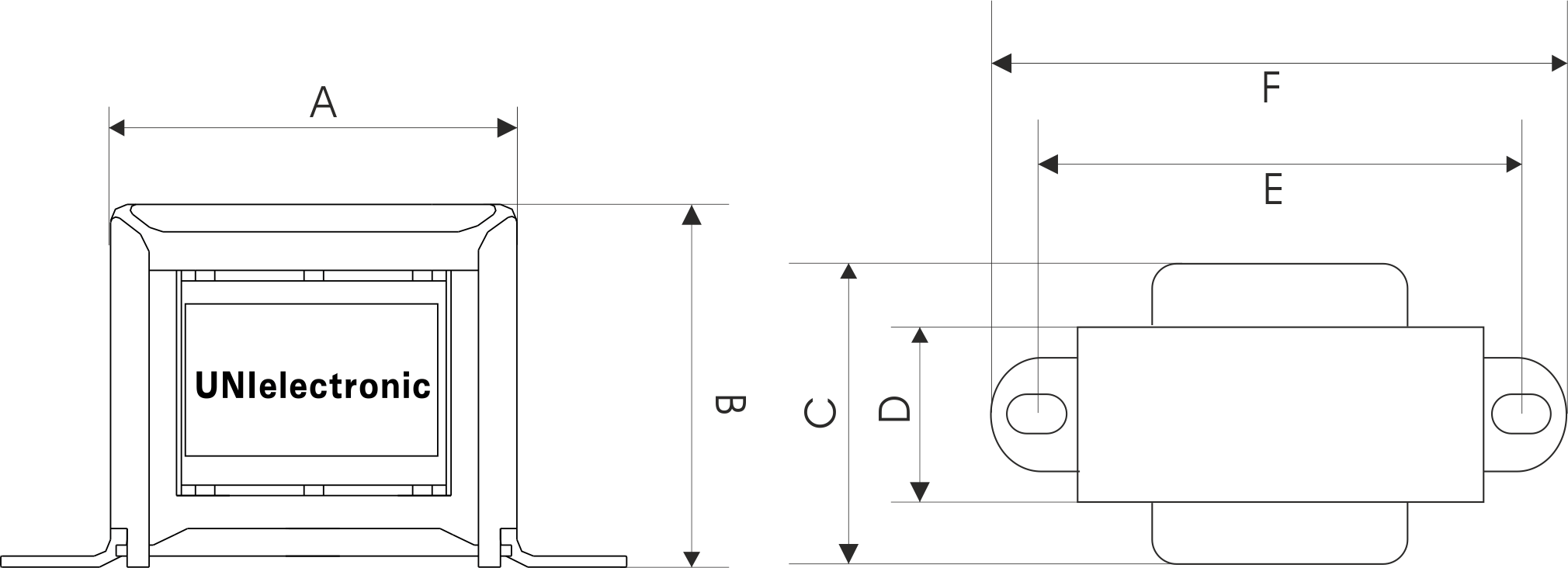

| Abmessungen: | ||||||
| A | 43mm | 43mm | 50mm | 50mm | 50mm | 60mm |
| B | 35mm | 35mm | 43mm | 43mm | 43mm | 50mm |
| C | 35mm | 40mm | 45mm | 40mm | 40mm | 45mm |
| D | 15mm | 22mm | 22mm | 25mm | 26mm | 26mm |
| E | 50mm | 55mm | 62mm | 62mm | 62mm | 68mm |
| F | 65mm | 65mm | 75mm | 72mm | 72mm | 80mm |
