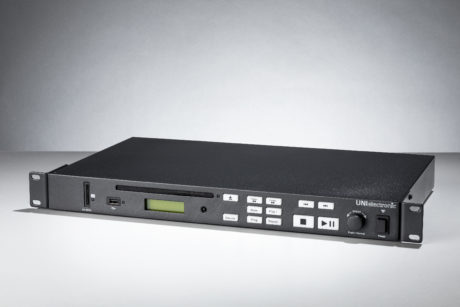

UD 1002 – CD Player
The ideal music source for all modern digital media and file formats, such as CD, USB media or SD/MMC cards. High operating comfort thanks for large, backlit rubber keys. New feature: the singple-play function and pitch control for the drive. The 19” brackets are removable.
Optionally, an RS 232 interface (UAC5) or an RS232/ Ethernet interface (UAC5E) are available for remote control using the RS 232 protocol, iPhone app or 6 analog control inputs.
Optional IR remote control.
Technical Data:
| Name: | UD 1002 |
| Item no.: | 105114 |
| Power input: | 230 V (50/60 Hz) |
| Power consumption: | 50 VA |
| Media formats: | CD, CD-R, CD-R/W, USB, SD/MMC |
| File formats: | MP3, WMA, audio CD |
| Output Level: | 1kHz, 0 dB 1.2 V (+/- 2 dB) |
| Transmission range: | 20 Hz - 20 kHz |
| Total Harmonic Distortion (THD): | < 0.1 % (1kHz) |
| Signal-to-noise ratio: | > 70 dB |
| Options: | IR Remote Control RS 232 analog / Ethernet interface |
| Supported file sizes: | USB up to 160 GB, SD up to 32 GB |
| Dimensions (in mm): | 44 x 482 x 250 (1 RU) |
| Weight: | 3.4 kg |
